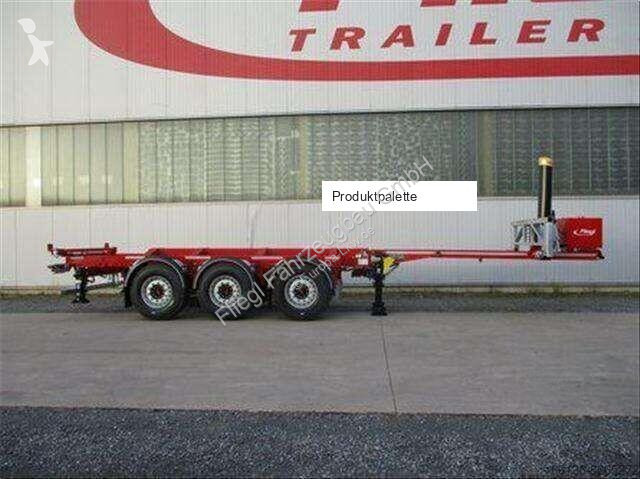

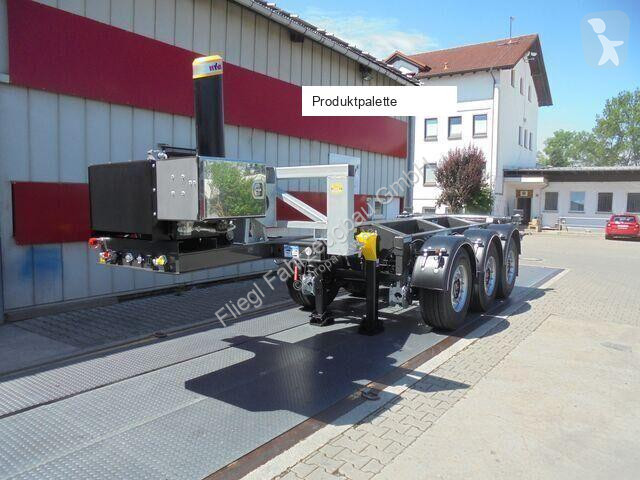

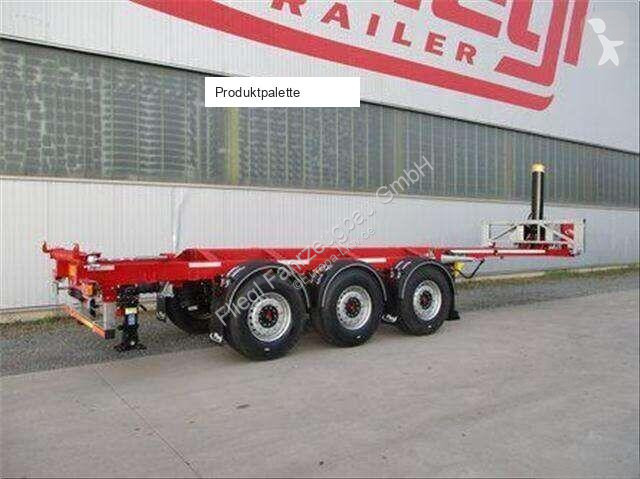

Semirremolque plataforma Fliegl Vario SDS 380 Kipp 30/40 nuevo

07819 Triptis
Fliegl

Información principal
Ref. cliente :	Produktpalette
Ref. web :	11509095
Carrocería	Plataforma
Marca	Fliegl
Gama (marca : Fliegl)	Vario
Modelo	SDS 380 Kipp 30/40
Estado	Nuevo
Año	-
Fecha 1ª matriculación
País	ALEMANIA
Constructor	Fliegl

Caja de cambios y transmisión
Precisiones caja de cambios	Boîte automatique

Neumáticos
Estado y dimensiones de los neumáticos	100 %

Equipamiento Semirremolque Fliegl
Suspensión Neumática EBS

Comentarios
Localisation : • Allemagne Triptis Carrosserie : • hauteur - 1,295 m Description: Other Functionality: fully functional Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland Note: The trailer may only be pulled by towing vehicles that guarantee the effectiveness of the ABS! Achsenkonfiguration: 3 axles Custom-made transport solution Configure your Fliegl vehicle according to your requirements. The vehicle shown is an example. Production and equipment are tailored to individual customer requirements Chassis saddle container Fine-grain steel welded construction saddle plate with 2 replaceable kingpins and 2 kingpin positions Front locking mechanism on the tipper ram mounting bracket with lateral locking Tapered locking wedges rear locking mechanism on a continuous pivot shaft with return spring Without subframe for self-supporting containers Container mounts Locking crossmember 2-fold for locking 1 x 30 ft or 1 x 40 ft container Adjustment via central telescope as an interlocking central tube frame with bolt lock. Optimal saddle load when transporting 30 ft and 40 ft containers 24 tons 2-speed support winch single-sided operation with straight lower part without thrust compensation 2 support wedges with holder Aluminum side impact protection Galvanized steel underrun protection Half-shell fenders with anti-spray flaps according to EC 100 low-pressure cylinder max. 150 bar with HDK screw connection fixed part NW 48 mm. (without hose connection) Operation hydraulically via truck auxiliary drive included Hydraulic connection with hose and HDK screw connector NW = 48 mm with knurled nut Axles + Suspension SAF disc brake axles with 430 mm disc diameter Axle/chassis laser-aligned reduces tire wear and fuel consumption Axle spacing offset mm (combined transport) up to 44 tons total weight Braking system 170 2-line compressed air braking system Color-coded line routing for easy service Spring-loaded parking brake Tele Control Axle load adjustment for easy telescoping 2 fail-safe coupling heads at the front without connection cable electronic braking system with EBS socket at the front without connection cable with lifting and lowering valve Vehicle - driving stability system Axle load recognition via EBS-CAN bus signal for display on the display in the driver''s cab the truck must be prepared accordingly Wheels and tires 385/65 R22.5 manufacturer at the manufacturer''s choice Steel rims factory silver Electrical system 24 volts multi-chamber lights yellow LED lighting on the side Nebyr T Naei Riv Esyjwk 2 white position lights at the front 2 white/red marker lights at the rear 2 x 7-pole fail-safe sockets at the front without connection cable 2 additional LED work lights at the rear switched via reversing light Custom-made transport solution Configure your Fliegl vehicle according to your requirements. The vehicle shown is an example. Production and equipment are tailored to individual customer requirements
Ver todo

Comentarios

Localisation :
• Allemagne Triptis
Carrosserie :
• hauteur - 1,295 m

Description: Other
Functionality: fully functional
Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland
Note: The trailer may only be pulled by towing vehicles that guarantee the effectiveness of the ABS!
Achsenkonfiguration: 3 axles
Custom-made transport solution
Configure your Fliegl vehicle according to your requirements. The vehicle shown is an example. Production and equipment are tailored to individual customer requirements
Chassis
saddle
container
Fine-grain steel welded construction
saddle plate with 2 replaceable kingpins and 2 kingpin positions

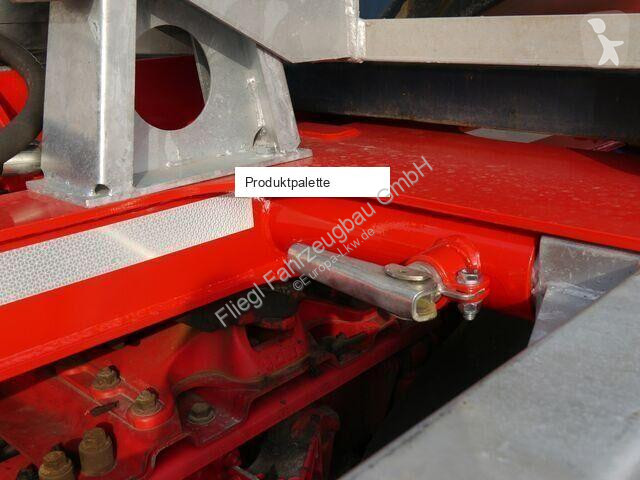

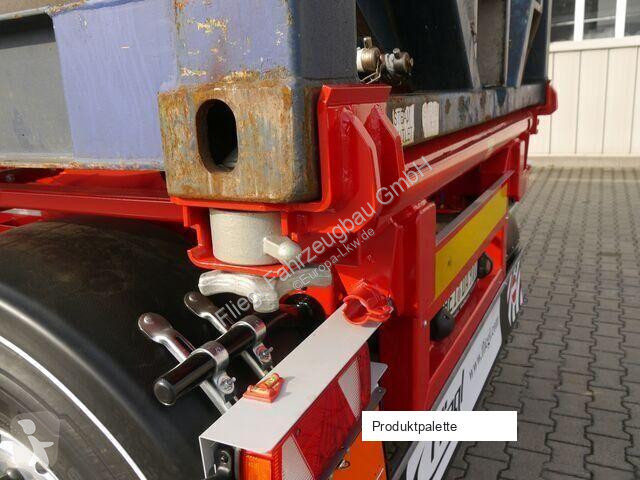

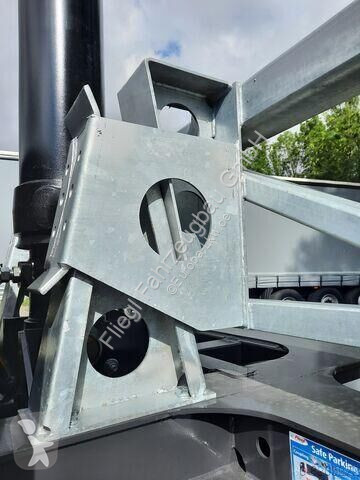

Front locking mechanism on the tipper ram mounting bracket with lateral locking
Tapered locking wedges
rear locking mechanism on a continuous pivot shaft with return spring
Without subframe for self-supporting containers
Container mounts
Locking crossmember
2-fold for locking 1 x 30 ft or 1 x 40 ft container
Adjustment via central telescope as an interlocking central tube frame
with bolt lock. Optimal saddle load when transporting 30 ft and 40 ft containers
24 tons
2-speed support winch
single-sided operation
with straight lower part
without thrust compensation
2 support wedges with holder

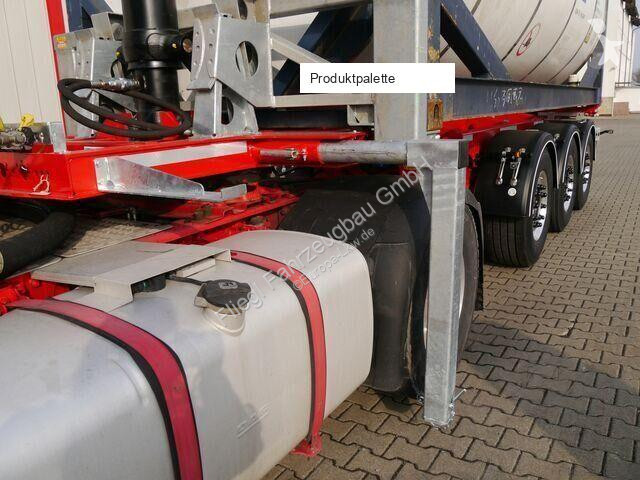

Aluminum side impact protection
Galvanized steel underrun protection

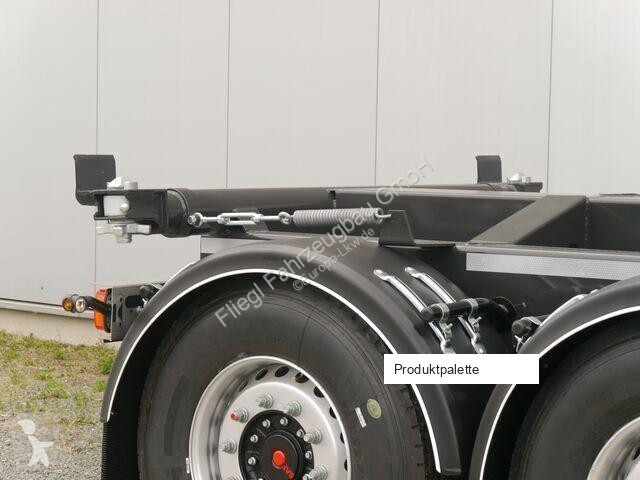

Half-shell fenders
with anti-spray flaps according to EC

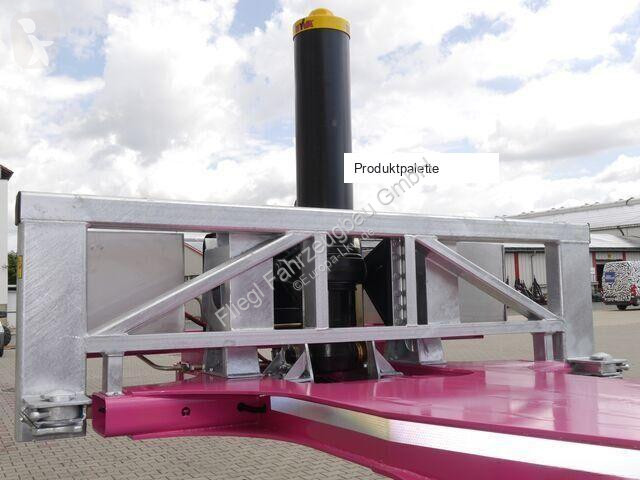

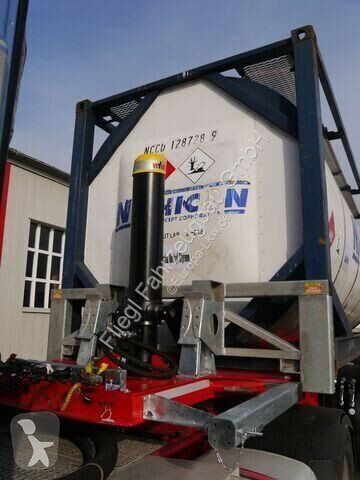

100 low-pressure cylinder
max. 150 bar
with HDK screw connection
fixed part
NW 48 mm. (without hose connection)
Operation hydraulically via truck auxiliary drive
included
Hydraulic connection with hose and HDK screw connector NW = 48 mm with knurled nut
Axles + Suspension
SAF disc brake axles with 430 mm disc diameter
Axle/chassis laser-aligned
reduces tire wear and fuel consumption
Axle spacing offset mm (combined transport) up to 44 tons total weight
Braking system
170 2-line compressed air braking system
Color-coded line routing for easy service
Spring-loaded parking brake
Tele Control
Axle load adjustment for easy telescoping
2 fail-safe coupling heads at the front
without connection cable
electronic braking system with EBS socket at the front
without connection cable
with lifting and lowering valve
Vehicle - driving stability system
Axle load recognition via EBS-CAN bus signal
for display on the display in the driver''s cab
the truck must be prepared accordingly
Wheels and tires
385/65 R22.5
manufacturer at the manufacturer''s choice
Steel rims
factory silver

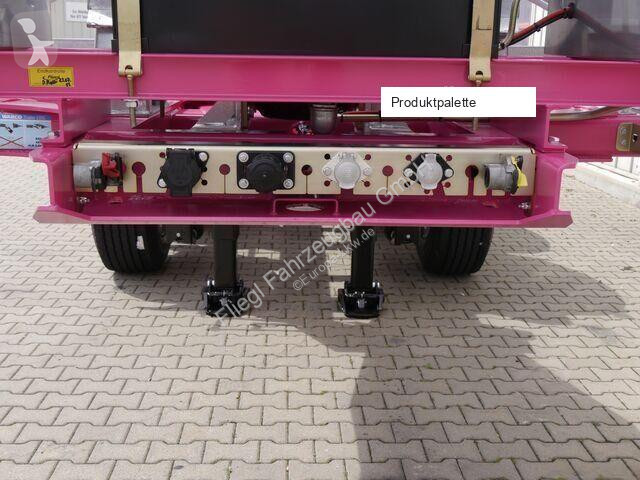

Electrical system
24 volts
multi-chamber lights
yellow LED lighting on the side
Nebyr T Naei Riv Esyjwk
2 white position lights at the front
2 white/red marker lights at the rear
2 x 7-pole fail-safe sockets at the front
without connection cable
2 additional LED work lights at the rear
switched via reversing light
Custom-made transport solution
Configure your Fliegl vehicle according to your requirements. The vehicle shown is an example. Production and equipment are tailored to individual customer requirements

Ver todo

Comentarios
Localisation : • Allemagne Triptis Carrosserie : • hauteur - 1,295 m Description: Other Functionality: fully functional Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland Note: The trailer may only be pulled by towing vehicles that guarantee the effectiveness of the ABS! Achsenkonfiguration: 3 axles Custom-made transport solution Configure your Fliegl vehicle according to your requirements. The vehicle shown is an example. Production and equipment are tailored to individual customer requirements Chassis saddle container Fine-grain steel welded construction saddle plate with 2 replaceable kingpins and 2 kingpin positions Front locking mechanism on the tipper ram mounting bracket with lateral locking Tapered locking wedges rear locking mechanism on a continuous pivot shaft with return spring Without subframe for self-supporting containers Container mounts Locking crossmember 2-fold for locking 1 x 30 ft or 1 x 40 ft container Adjustment via central telescope as an interlocking central tube frame with bolt lock. Optimal saddle load when transporting 30 ft and 40 ft containers 24 tons 2-speed support winch single-sided operation with straight lower part without thrust compensation 2 support wedges with holder Aluminum side impact protection Galvanized steel underrun protection Half-shell fenders with anti-spray flaps according to EC 100 low-pressure cylinder max. 150 bar with HDK screw connection fixed part NW 48 mm. (without hose connection) Operation hydraulically via truck auxiliary drive included Hydraulic connection with hose and HDK screw connector NW = 48 mm with knurled nut Axles + Suspension SAF disc brake axles with 430 mm disc diameter Axle/chassis laser-aligned reduces tire wear and fuel consumption Axle spacing offset mm (combined transport) up to 44 tons total weight Braking system 170 2-line compressed air braking system Color-coded line routing for easy service Spring-loaded parking brake Tele Control Axle load adjustment for easy telescoping 2 fail-safe coupling heads at the front without connection cable electronic braking system with EBS socket at the front without connection cable with lifting and lowering valve Vehicle - driving stability system Axle load recognition via EBS-CAN bus signal for display on the display in the driver''s cab the truck must be prepared accordingly Wheels and tires 385/65 R22.5 manufacturer at the manufacturer''s choice Steel rims factory silver Electrical system 24 volts multi-chamber lights yellow LED lighting on the side Nebyr T Naei Riv Esyjwk 2 white position lights at the front 2 white/red marker lights at the rear 2 x 7-pole fail-safe sockets at the front without connection cable 2 additional LED work lights at the rear switched via reversing light Custom-made transport solution Configure your Fliegl vehicle according to your requirements. The vehicle shown is an example. Production and equipment are tailored to individual customer requirements

Comentarios

Tarifa de venta

Precio bajo pedido
