Semirremolque plataforma Fliegl 3-Achs Mega Gardine zum Aufbau nuevo

01/01/2026
Fliegl
07819 Triptis

Información principal
Ref. cliente :	Produktpalette
Ref. web :	11509201
Carrocería	Plataforma
Marca	Fliegl
Modelo	3-Achs Mega Gardine zum Aufbau
Estado	Nuevo
Año	2026
Fecha 1ª matriculación	01/01/2026
País	ALEMANIA
Constructor	Fliegl

Caja de cambios y transmisión
Precisiones caja de cambios	Boîte automatique

Neumáticos
Estado y dimensiones de los neumáticos	100 %

Equipamiento Semirremolque Fliegl
Suspensión Neumática

Comentarios
Localisation : • Allemagne Triptis Carrosserie : • 13,65 m × 2,48 m × 3 m Description: Curtainsider Functionality: fully functional Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland Farbe: original Achsenkonfiguration: 3 axles Save on transport costs! Upon request up to three curtainsider trailers can be delivered as a space-saving 3-unit stack. Roof and side curtains are supplied separately and can be easily installed after delivery. Benefit from significantly reduced transport costs Customized transport solution Configure your Fliegl trailer according to your requirements. The shown vehicle is an example only. Production and equipment are customized according to customer specifications #Chassis Fine-grain steel welded construction with "Preload" neck area reinforcement Fifth wheel plate with replaceable 2" kingpin Outer frame with Load-Lock profile for securing straps 24 t 2-speed landing gear one-side operation Extendable rear ladder Aluminium side underrun protection Galvanized steel underrun protection Rear impact protection Lockable plastic toolbox W=600 / H=425 / D=460 mm Storage box for fire extinguisher up to 6 kg #Axles + Suspension Disc brake axles Laser-measured axle and chassis alignment for reduced tyre wear and fuel consumption 1st axle automatic lift axle with forced lowering and starting aid (activated by 3x brake operation) #Brake system Dual-line compressed air braking system Colour-coded brake lines for easy service Spring-loaded parking brake 2 non-interchangeable coupling heads at front without connecting lines EBS electronic braking system with EBS socket at front Raise/lower valve Vehicle height increases by approx. 50 mm when lift axle is raised Vehicle driving stability system #Wheels and tyres 445/45 R19.5" steel rims factory silver finish #Electrical system 24 V system multi-chamber lights Yellow LED side marker lights White front position lights White/red rear lane marker lights 2 x 7-pin non-interchangeable sockets at front Nebz Nnhhezmub Houswk #Floor Approx. 30 mm phenolic plywood floor panels on longitudinal supports High point load capacity for forklift axle loads up to max. 7,100 kg Rear steel chequer plate flooring approx. 300 mm length #Front wall / Corner posts Height 2,580 mm Steel corner posts in high-volume design Side curtain release system at front wall "Crash Blocker" steel impact protection inside lower area (approx. 140 mm height) Front wall additionally covered inside with 1,250 mm high phenolic plywood panel #Centre posts 3 pairs of sliding posts movable over full length With 4-fold insertion pockets and long lower pocket 3 post positions 4 rows of aluminium V-insertion slats #Rear wall / Corner posts Steel rear corner posts up to roof height Curtain attachment with round tube and tension ratchet Double-wing rear portal doors with 2 internal rotary bar locks each #Curtain Curtain with welded horizontal and vertical reinforcement belts Stainless steel tension buckles #Roof Sliding roof system with rear end lift function Roof opens from rear to front L-shaped roof beam for automotive industry applications Non-elastic roof with minimal deflection during loading and unloading Optimized rain gutter at rear mounted on top rear cross member above doors EcoLift roof lifting system height adjustable by approx. 380 mm on both sides with gas spring assistance Complete body supplied loose as a kit (unassembled)
Ver todo

Comentarios

Localisation :
• Allemagne Triptis
Carrosserie :
• 13,65 m × 2,48 m × 3 m

Description: Curtainsider
Functionality: fully functional
Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland
Farbe: original
Achsenkonfiguration: 3 axles
Save on transport costs!
Upon request

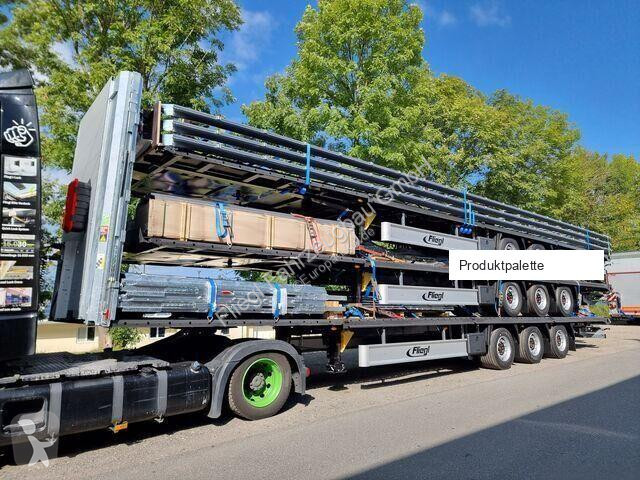

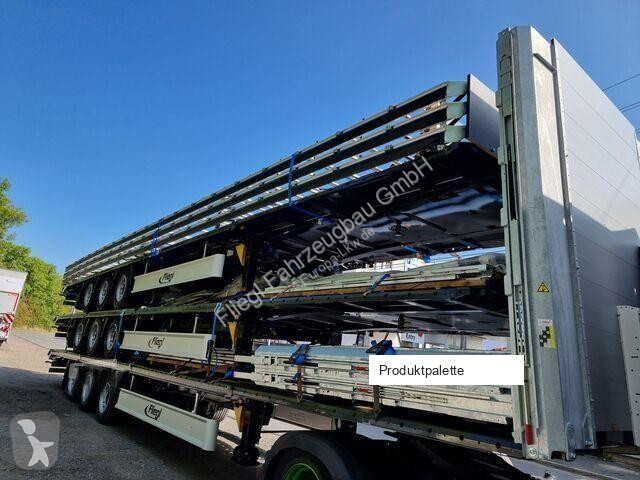

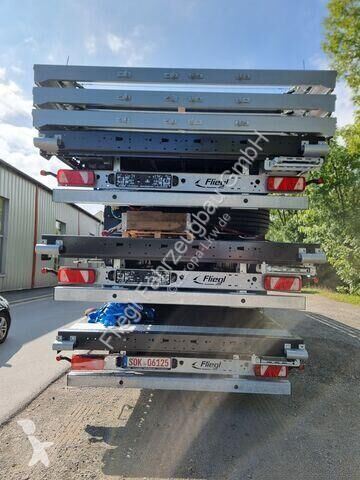

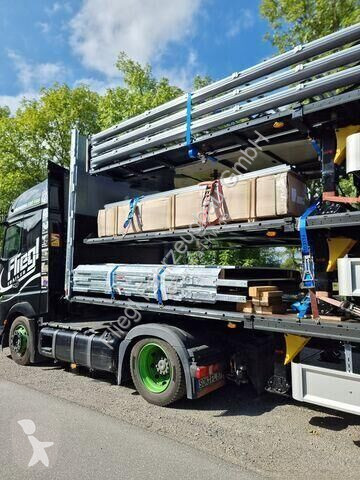

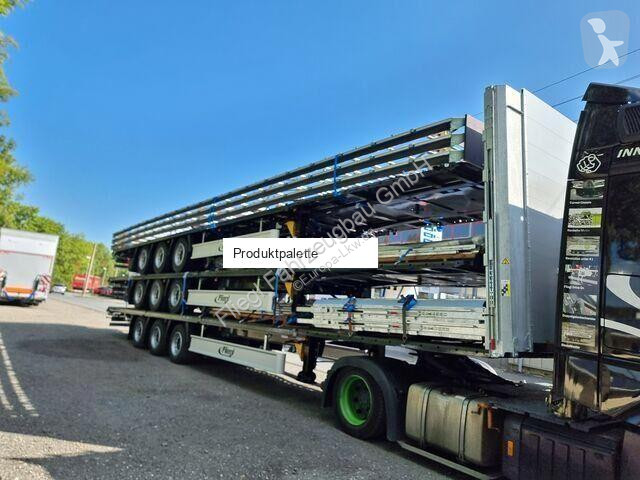

up to three curtainsider trailers can be delivered as a space-saving 3-unit stack. Roof and side curtains are supplied separately and can be easily installed after delivery. Benefit from significantly reduced transport costs
Customized transport solution
Configure your Fliegl trailer according to your requirements. The shown vehicle is an example only. Production and equipment are customized according to customer specifications
#Chassis
Fine-grain steel welded construction with "Preload" neck area reinforcement

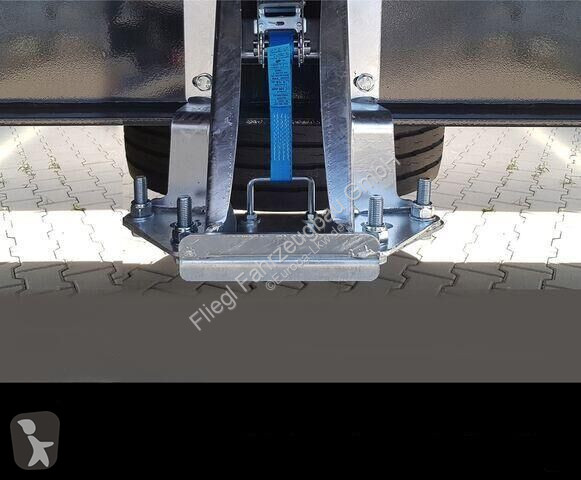

Fifth wheel plate with replaceable 2" kingpin

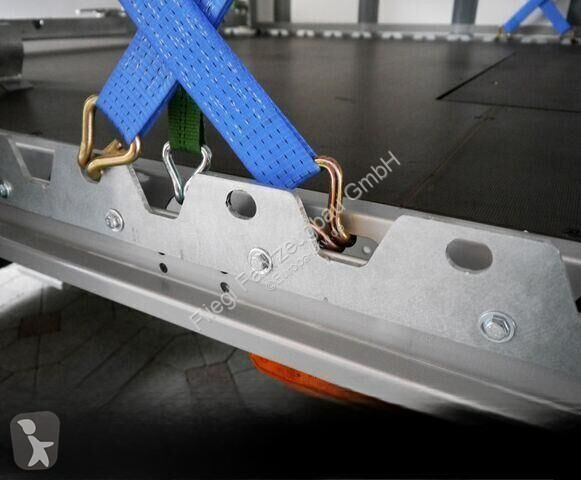

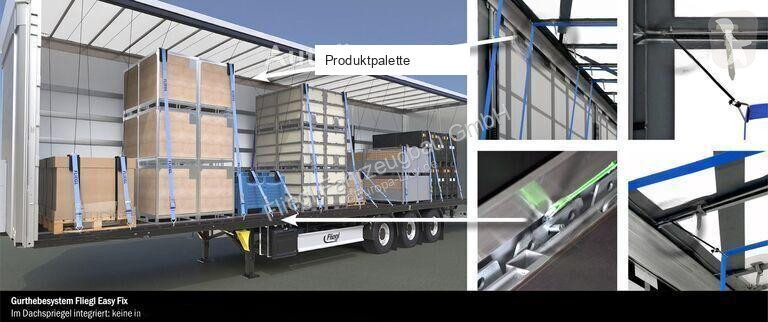

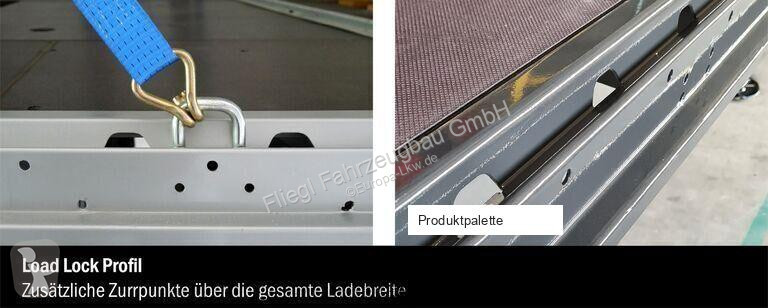

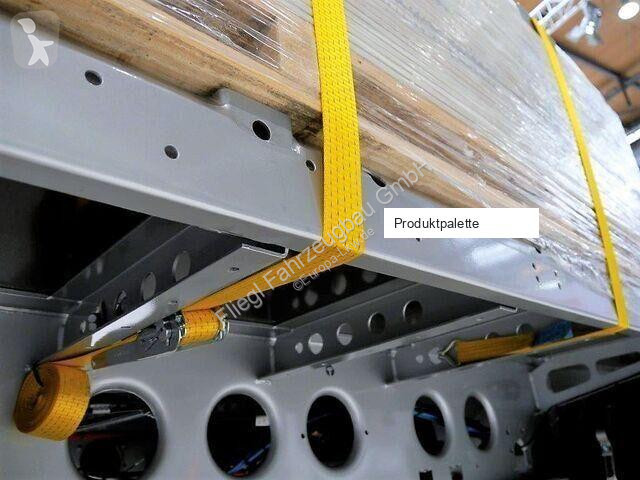

Outer frame with Load-Lock profile for securing straps
24 t 2-speed landing gear
one-side operation
Extendable rear ladder

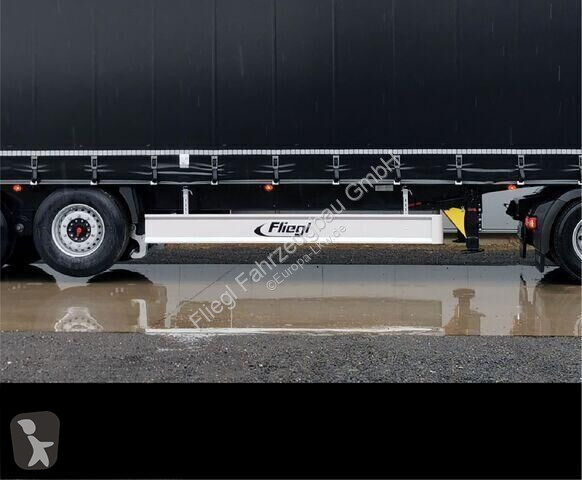

Aluminium side underrun protection
Galvanized steel underrun protection
Rear impact protection
Lockable plastic toolbox
W=600 / H=425 / D=460 mm
Storage box for fire extinguisher up to 6 kg
#Axles + Suspension
Disc brake axles
Laser-measured axle and chassis alignment for reduced tyre wear and fuel consumption
1st axle automatic lift axle with forced lowering and starting aid (activated by 3x brake operation)
#Brake system
Dual-line compressed air braking system
Colour-coded brake lines for easy service
Spring-loaded parking brake
2 non-interchangeable coupling heads at front
without connecting lines
EBS electronic braking system with EBS socket at front
Raise/lower valve
Vehicle height increases by approx. 50 mm when lift axle is raised
Vehicle driving stability system
#Wheels and tyres
445/45 R19.5" steel rims
factory silver finish
#Electrical system
24 V system
multi-chamber lights
Yellow LED side marker lights
White front position lights

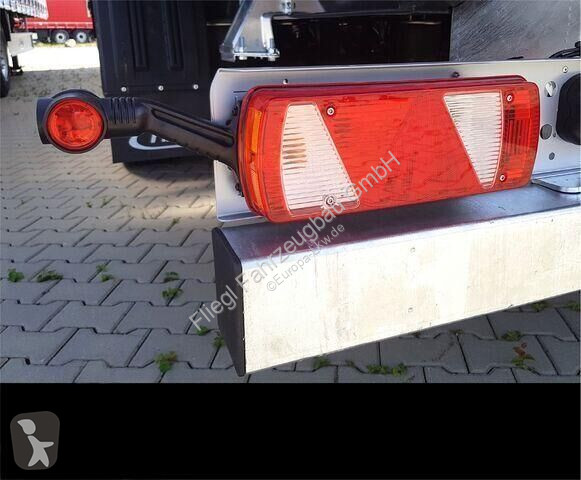

White/red rear lane marker lights
2 x 7-pin non-interchangeable sockets at front
Nebz Nnhhezmub Houswk
#Floor
Approx. 30 mm phenolic plywood floor panels on longitudinal supports
High point load capacity for forklift axle loads up to max. 7,100 kg
Rear steel chequer plate flooring approx. 300 mm length
#Front wall / Corner posts
Height 2,580 mm
Steel corner posts in high-volume design
Side curtain release system at front wall
"Crash Blocker" steel impact protection inside lower area (approx. 140 mm height)
Front wall additionally covered inside with 1,250 mm high phenolic plywood panel
#Centre posts
3 pairs of sliding posts
movable over full length
With 4-fold insertion pockets and long lower pocket
3 post positions
4 rows of aluminium V-insertion slats
#Rear wall / Corner posts

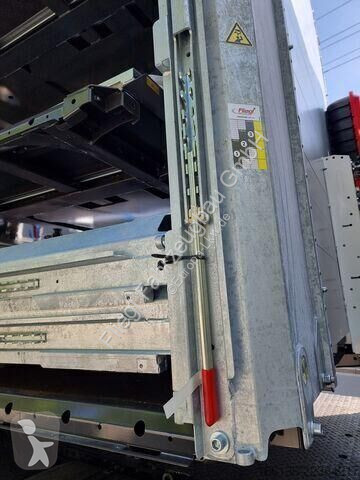

Steel rear corner posts up to roof height

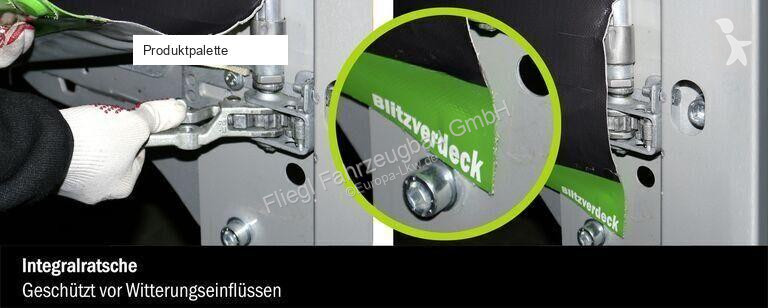

Curtain attachment with round tube and tension ratchet
Double-wing rear portal doors with 2 internal rotary bar locks each
#Curtain
Curtain with welded horizontal and vertical reinforcement belts
Stainless steel tension buckles

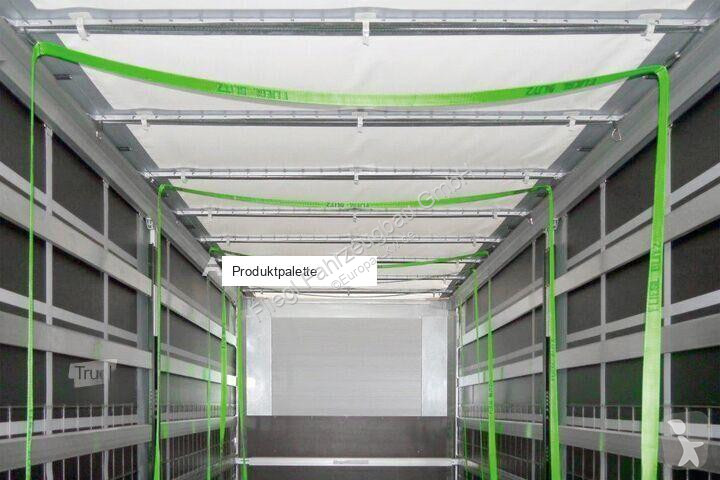

#Roof

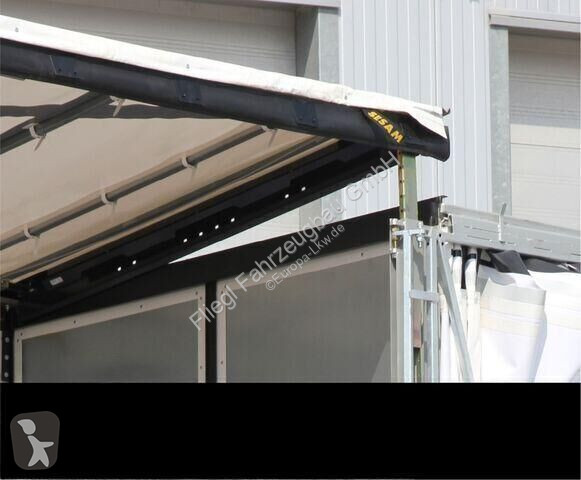

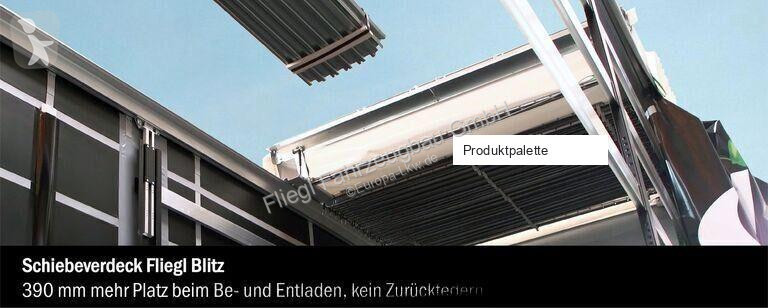

Sliding roof system with rear end lift function
Roof opens from rear to front
L-shaped roof beam for automotive industry applications
Non-elastic roof with minimal deflection during loading and unloading
Optimized rain gutter at rear
mounted on top rear cross member above doors
EcoLift roof lifting system
height adjustable by approx. 380 mm on both sides with gas spring assistance
Complete body supplied loose as a kit (unassembled)

Ver todo

Comentarios
Localisation : • Allemagne Triptis Carrosserie : • 13,65 m × 2,48 m × 3 m Description: Curtainsider Functionality: fully functional Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland Farbe: original Achsenkonfiguration: 3 axles Save on transport costs! Upon request up to three curtainsider trailers can be delivered as a space-saving 3-unit stack. Roof and side curtains are supplied separately and can be easily installed after delivery. Benefit from significantly reduced transport costs Customized transport solution Configure your Fliegl trailer according to your requirements. The shown vehicle is an example only. Production and equipment are customized according to customer specifications #Chassis Fine-grain steel welded construction with "Preload" neck area reinforcement Fifth wheel plate with replaceable 2" kingpin Outer frame with Load-Lock profile for securing straps 24 t 2-speed landing gear one-side operation Extendable rear ladder Aluminium side underrun protection Galvanized steel underrun protection Rear impact protection Lockable plastic toolbox W=600 / H=425 / D=460 mm Storage box for fire extinguisher up to 6 kg #Axles + Suspension Disc brake axles Laser-measured axle and chassis alignment for reduced tyre wear and fuel consumption 1st axle automatic lift axle with forced lowering and starting aid (activated by 3x brake operation) #Brake system Dual-line compressed air braking system Colour-coded brake lines for easy service Spring-loaded parking brake 2 non-interchangeable coupling heads at front without connecting lines EBS electronic braking system with EBS socket at front Raise/lower valve Vehicle height increases by approx. 50 mm when lift axle is raised Vehicle driving stability system #Wheels and tyres 445/45 R19.5" steel rims factory silver finish #Electrical system 24 V system multi-chamber lights Yellow LED side marker lights White front position lights White/red rear lane marker lights 2 x 7-pin non-interchangeable sockets at front Nebz Nnhhezmub Houswk #Floor Approx. 30 mm phenolic plywood floor panels on longitudinal supports High point load capacity for forklift axle loads up to max. 7,100 kg Rear steel chequer plate flooring approx. 300 mm length #Front wall / Corner posts Height 2,580 mm Steel corner posts in high-volume design Side curtain release system at front wall "Crash Blocker" steel impact protection inside lower area (approx. 140 mm height) Front wall additionally covered inside with 1,250 mm high phenolic plywood panel #Centre posts 3 pairs of sliding posts movable over full length With 4-fold insertion pockets and long lower pocket 3 post positions 4 rows of aluminium V-insertion slats #Rear wall / Corner posts Steel rear corner posts up to roof height Curtain attachment with round tube and tension ratchet Double-wing rear portal doors with 2 internal rotary bar locks each #Curtain Curtain with welded horizontal and vertical reinforcement belts Stainless steel tension buckles #Roof Sliding roof system with rear end lift function Roof opens from rear to front L-shaped roof beam for automotive industry applications Non-elastic roof with minimal deflection during loading and unloading Optimized rain gutter at rear mounted on top rear cross member above doors EcoLift roof lifting system height adjustable by approx. 380 mm on both sides with gas spring assistance Complete body supplied loose as a kit (unassembled)

Comentarios

Tarifa de venta

Precio bajo pedido
