Semirremolque plataforma Fliegl nuevo

01/01/2026
Fliegl
07819 Triptis

Información principal
Ref. cliente :	Produktpalette
Ref. web :	11509135
Carrocería	Plataforma
Marca	Fliegl
Estado	Nuevo
Año	2026
Fecha 1ª matriculación	01/01/2026
País	ALEMANIA
Constructor	Fliegl

Caja de cambios y transmisión
Precisiones caja de cambios	Boîte automatique

Neumáticos
Estado y dimensiones de los neumáticos	100 %

Equipamiento Semirremolque Fliegl

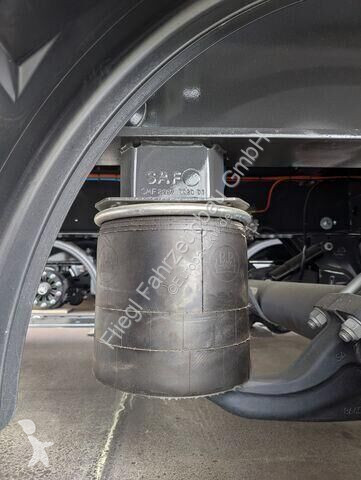

Suspensión Neumática EBS

Comentarios
Localisation : • Allemagne Triptis Carrosserie : • 13,65 m × 2,48 m × 2,79 m Informations supplémentaires : • noir Description: Open semitrailer with tarp Functionality: fully functional Rental: is possible Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland Farbe: original Achsenkonfiguration: 3 axles Save on transport costs! Upon request up to three curtainsider trailers can be delivered as a space-saving 3-unit stack. Roof and side curtains are supplied separately and can be easily installed after delivery. Benefit from significantly reduced transport costs Customized transport solution Configure your Fliegl trailer according to your requirements. The shown vehicle is an example only. Production and equipment are customized according to customer specifications # Chassis Fine-grain steel welded construction fifth wheel plate with replaceable 2" kingpin Outer frame with Load-Lock profile for securing straps 24 t 2-speed landing gear one-side operation with load compensation Extendable rear ladder side door retainers 2 wheel chocks with holders Aluminium side underrun protection galvanized steel underrun protection Quarter mudguards with EC-compliant anti-spray mud flaps Rear impact protection 2 spare wheel holders + 1 spare wheel (same make as standard tyres) Lockable plastic toolbox Storage box for fire extinguisher up to 6 kg # Axles + Suspension BPW disc brake axles with 430 mm discs Laser-measured axle/chassis alignment for reduced tyre wear and fuel consumption 1st axle automatic lift axle with forced lowering and starting aid (activated by 3x brake operation) # Brake system Dual-line compressed air braking system Colour-coded brake lines for easy service Spring-loaded parking brake EBS electronic braking system with EBS socket at front Raise/lower valve and vehicle stability system # Wheels and tyres 385/65 R22.5" steel rims factory silver finish # Electrical system 24 V system multi-chamber lights Yellow LED side marker lights White front position lights Nwobz Nnezmtmujhhuok White/red rear lane marker lights 2 x 7-pin sockets at front # Floor Approx. 30 mm phenolic plywood floor panels on 8 longitudinal supports High point load capacity for forklift axle loads up to max. 7,900 kg Rear steel chequer plate flooring approx. 300 mm length # Front wall / Posts Height 2,580 mm Steel corner posts in high-volume design "Crash Blocker" steel impact protection inside lower front area # Centre posts 3 pairs of sliding posts movable over full length 4-fold insertion pockets and long lower pocket 3 post positions 4 rows of aluminium V-insertion slats # Rear wall Steel rear corner posts up to roof height Curtain attachment with round tube and tension ratchet Double-wing rear portal doors with internal rotary bar locks # Curtain Curtain with welded horizontal and vertical reinforcement belts Stainless steel tension buckles # Roof Sliding roof system with rear end lift-up function Roof opens from rear to front L-shaped roof beam for automotive industry applications Non-elastic roof with minimal deflection during loading/unloading Optimized rear rain gutter Complete body supplied loose as a kit (unassembled)
Ver todo

Comentarios

Localisation :
  • Allemagne Triptis
Carrosserie :
  • 13,65 m × 2,48 m × 2,79 m
Informations supplémentaires :
  • noir

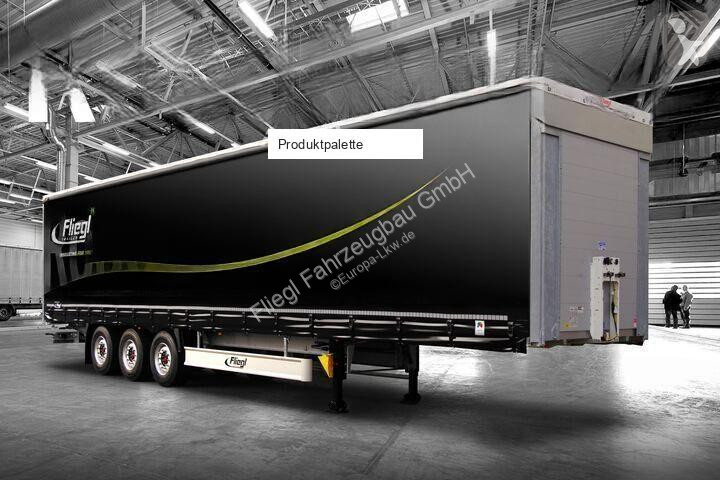

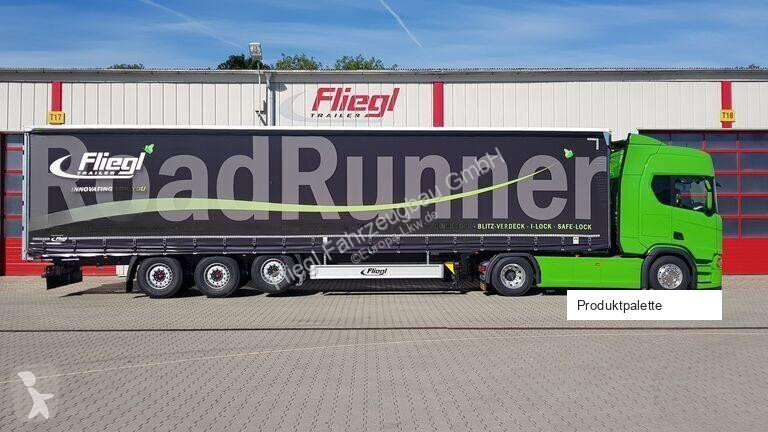

Description: Open semitrailer with tarp
Functionality: fully functional
Rental: is possible
Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland
Farbe: original
Achsenkonfiguration: 3 axles

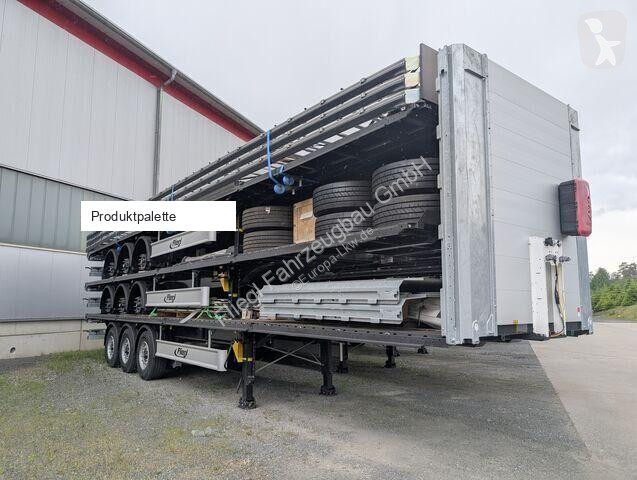

Save on transport costs!
Upon request
up to three curtainsider trailers can be delivered as a space-saving 3-unit stack. Roof and side curtains are supplied separately and can be easily installed after delivery. Benefit from significantly reduced transport costs
Customized transport solution
Configure your Fliegl trailer according to your requirements. The shown vehicle is an example only. Production and equipment are customized according to customer specifications
# Chassis
Fine-grain steel welded construction
fifth wheel plate with replaceable 2" kingpin

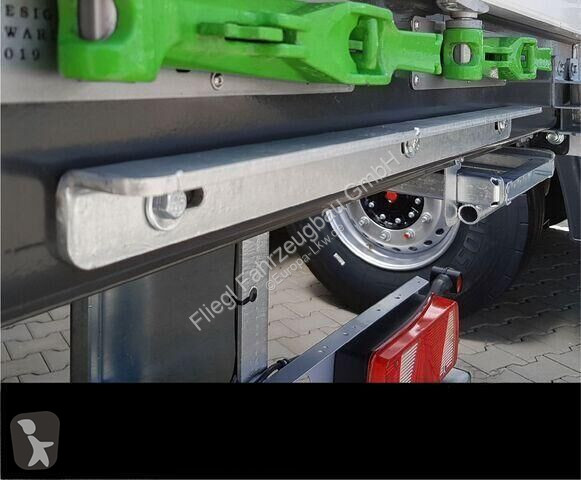

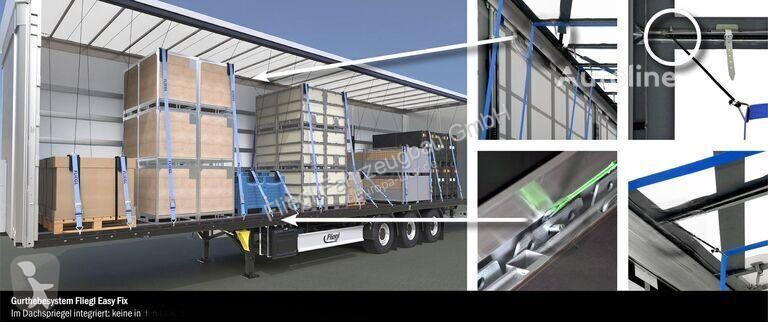

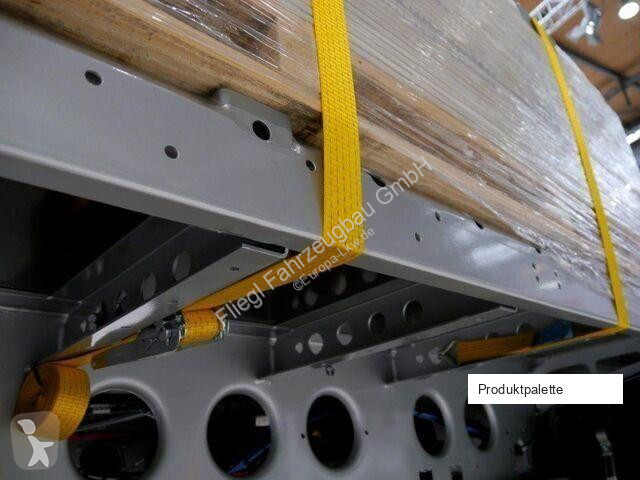

Outer frame with Load-Lock profile for securing straps
24 t 2-speed landing gear
one-side operation
with load compensation

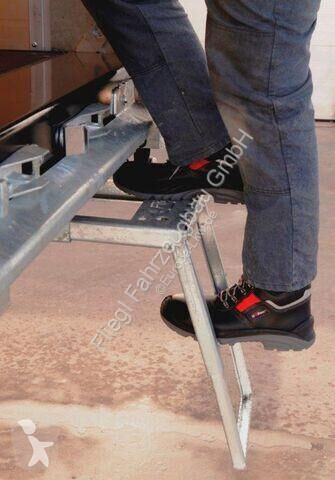

Extendable rear ladder

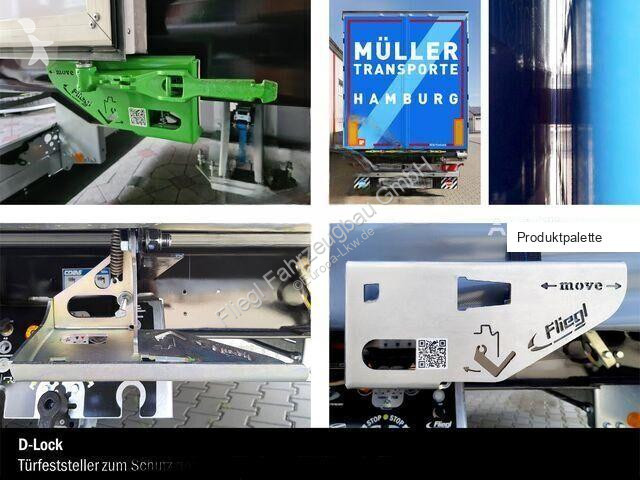

side door retainers
2 wheel chocks with holders
Aluminium side underrun protection
galvanized steel underrun protection

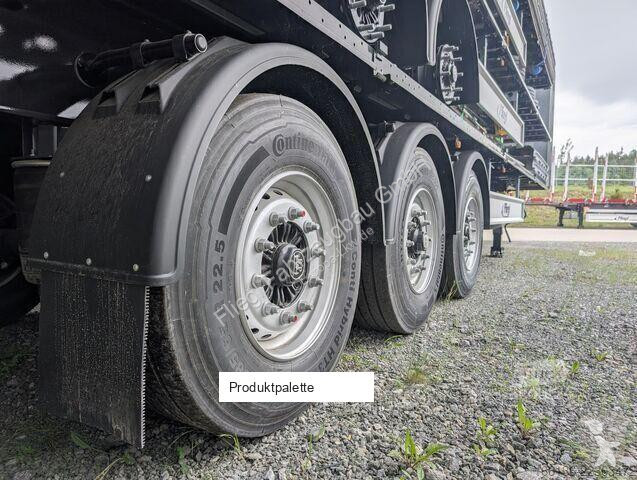

Quarter mudguards with EC-compliant anti-spray mud flaps
Rear impact protection
2 spare wheel holders + 1 spare wheel (same make as standard tyres)
Lockable plastic toolbox
Storage box for fire extinguisher up to 6 kg
# Axles + Suspension

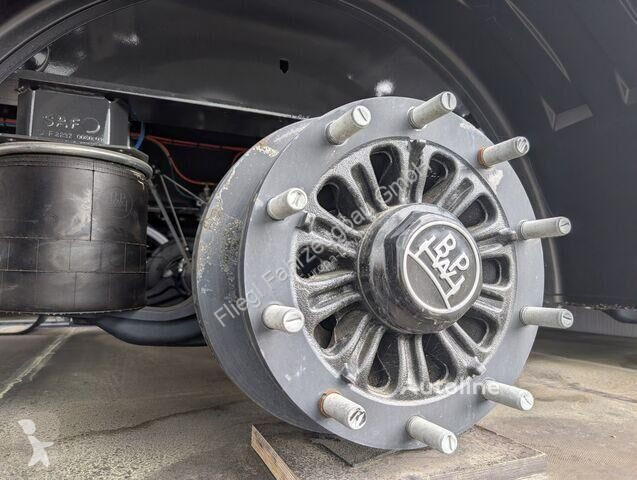

BPW disc brake axles with 430 mm discs
Laser-measured axle/chassis alignment for reduced tyre wear and fuel consumption
1st axle automatic lift axle with forced lowering and starting aid (activated by 3x brake operation)
# Brake system

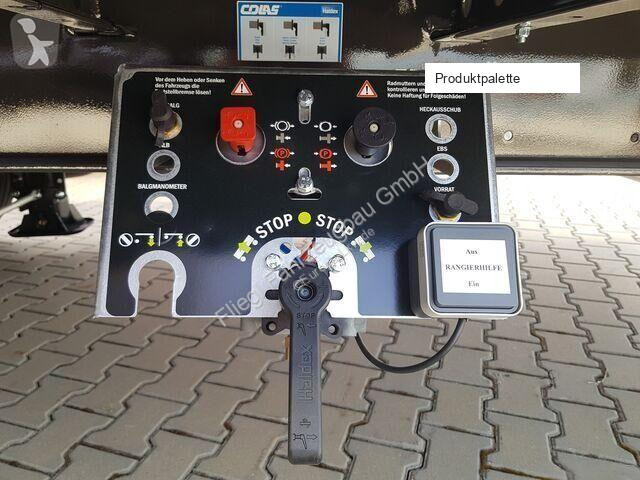

Dual-line compressed air braking system
Colour-coded brake lines for easy service
Spring-loaded parking brake
EBS electronic braking system with EBS socket at front
Raise/lower valve and vehicle stability system
# Wheels and tyres
385/65 R22.5" steel rims
factory silver finish

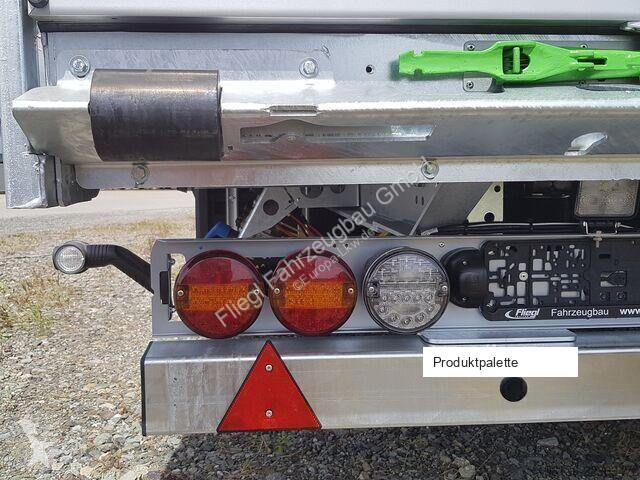

# Electrical system
24 V system
multi-chamber lights
Yellow LED side marker lights
White front position lights
Nwobz Nnezmtmujhhuok
White/red rear lane marker lights
2 x 7-pin sockets at front
# Floor
Approx. 30 mm phenolic plywood floor panels on 8 longitudinal supports
High point load capacity for forklift axle loads up to max. 7,900 kg
Rear steel chequer plate flooring approx. 300 mm length
# Front wall / Posts
Height 2,580 mm
Steel corner posts in high-volume design
"Crash Blocker" steel impact protection inside lower front area
# Centre posts
3 pairs of sliding posts
movable over full length
4-fold insertion pockets and long lower pocket
3 post positions
4 rows of aluminium V-insertion slats
# Rear wall
Steel rear corner posts up to roof height

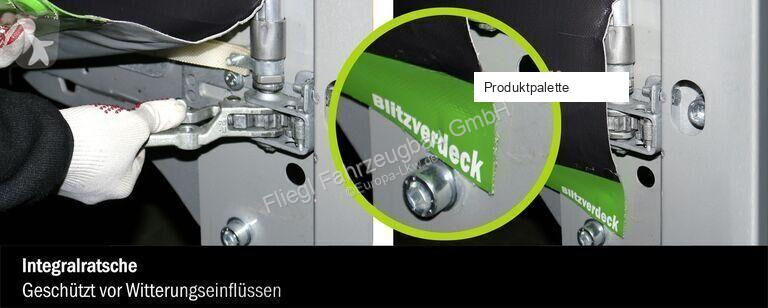

Curtain attachment with round tube and tension ratchet
Double-wing rear portal doors with internal rotary bar locks
# Curtain
Curtain with welded horizontal and vertical reinforcement belts
Stainless steel tension buckles

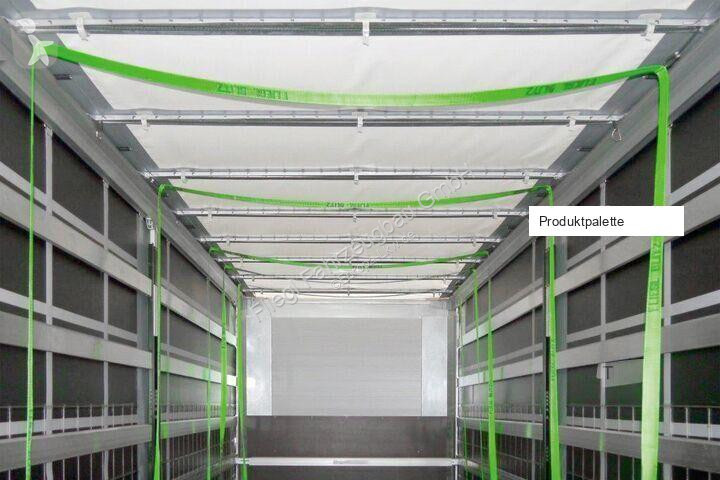

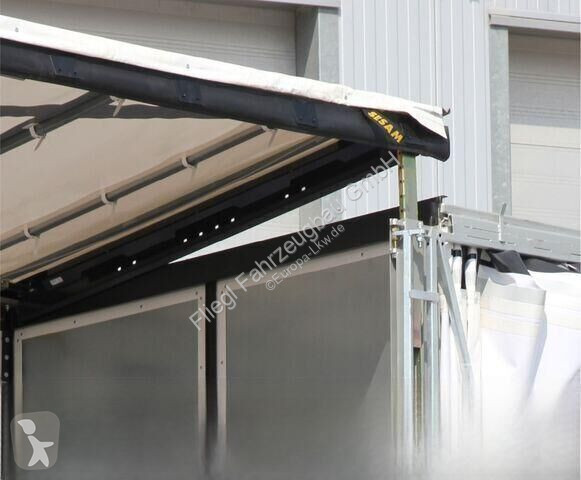

# Roof

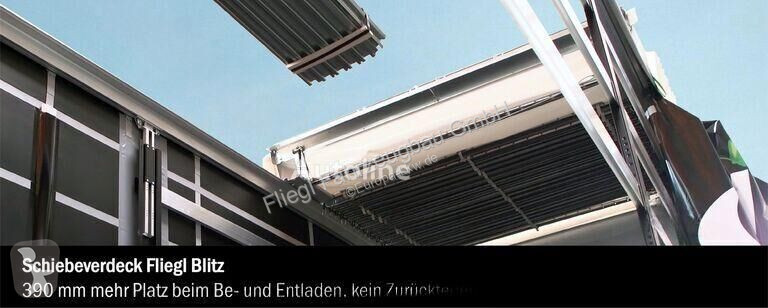

Sliding roof system with rear end lift-up function
Roof opens from rear to front
L-shaped roof beam for automotive industry applications
Non-elastic roof with minimal deflection during loading/unloading
Optimized rear rain gutter

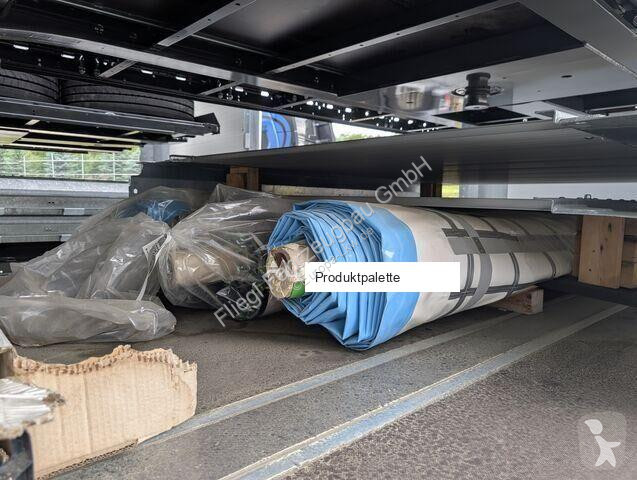

Complete body supplied loose as a kit (unassembled)
