Semirremolque plataforma Fliegl 3-Achs Plateau Sattel SDS 380 Mega nuevo

01/01/2026
Fliegl
07819 Triptis

Información principal
Ref. cliente :	Produktpalette
Ref. web :	11509109
Carrocería	Plataforma
Marca	Fliegl
Modelo	3-Achs Plateau Sattel SDS 380 Mega
Estado	Nuevo
Año	2026
Fecha 1ª matriculación	01/01/2026
País	ALEMANIA
Constructor	Fliegl

Caja de cambios y transmisión
Precisiones caja de cambios	Boîte automatique

Equipamiento Semirremolque Fliegl
Suspensión Neumática

Neumáticos
Estado y dimensiones de los neumáticos	100 %

Suspensión / Ejes
Eje de altura regulable

Comentarios
Localisation : • Allemagne Triptis Carrosserie : • longueur - 13,65 m, largeur - 2,48 m Description: Plateau semi-trailer mega Functionality: fully functional Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland Container locks: 4 pairs recessed in floor for 2x20ft or 1x40ft containers, foremost position as recessed folding lock Ride height linked to lift axle: raising lift axle increases loading/overall height by 50 mm Farbe: silver Achsenkonfiguration: 3 axles #Plateau semi-trailer Mega Bespoke transport solution – configure your Fliegl vehicle to your requirements vehicle shown is an example production and equipment individually to customer specification #Chassis – general haulage semi-trailer Fine-grain steel welded construction Fifth wheel plate with replaceable 2" kingpin Reinforced frame for high payload also suitable for vehicle transport Outer frame with "Load-Lock-Profil" at approx. 400 mm centres for lashing strap attachment 10 pairs of lashing points recessed top/outside in outer frame 10 t each Foldable rear support legs 2 wheel chocks with holder Aluminium side impact protection Galvanised steel underrun protection Quarter-shell mudguards ahead of axle 1 and behind each axle with anti-spray flaps behind each axle 1 spare wheel holder for 1 spare wheel with wheel fixing set 2 lockable plastic toolboxes W=600/H=425/D=460 mm 10 pairs of stake pockets recessed in outer frame 70x40 mm internal 10 stake pockets recessed centrally in floor 70x40 mm internal 2 transverse lashing/stake rails recessed in floor full width to outer frame approx. 100 mm high 20 mm round steel bars top and bottom (approx. 60 mm apart) angle-plate base half open below for lashing and fitting 80x80 mm stakes #Arrangement Stake pocket positions 2 and 4 per Fliegl data sheet 20 plug-in stakes hot-dip galvanised Storage space for aluminium loading ramps ramps slide in from the rear 3 pairs of folding lashing eyes 10 t in outer frame #Axles & suspension Nwe Dp Dy Aozwn Izexsk SAF disc-brake axles incl. forced lowering and traction aid activated by braking three times #Braking system 2-line air braking system colour-coded lines for easy servicing Spring-loaded parking brake 2 anti-mismatch coupling heads at front no connecting line EBS with front EBS socket no connecting cable Lift/lower valve 2 ride heights adjustable via hand control (1x 980 mm 1x 1100 mm coupling height) Trailer stability system #Wheels & tyres 435/50 R19.5 steel wheels #Electrics 24 V multi-chamber lights Yellow LED side marker lights 2 white LED front position lights 2 white/red outline marker lights at rear 2x 7-pin and 1x 15-pin anti-mismatch sockets at front LED work lights at sides 1x left and 1x right (direction of travel) 2 additional LED work lights at rear 1 beacon with holder switched via side lights 2 pairs of LED-illuminated warning boards extendable to 4,000 mm Additional 7-pin socket in underrun protection #Floor Phenolic plywood floor approx. 30 mm thick on longitudinal sub-frames for high point loads forklift axle load up to max. 7,100 kg #Front wall / front corner posts 25 mm aluminium hollow profile 1,350 mm high Solid steel corner posts (closed heavy-duty version) Front wall internally fitted with additional 1,250 mm high phenolic panel ("Crash-Blocker") Steel impact protection at approx. 140 mm height on lower interior Internal storage compartment for plug-in stakes
Ver todo

Comentarios

Localisation :
• Allemagne Triptis
Carrosserie :
• longueur - 13,65 m, largeur - 2,48 m

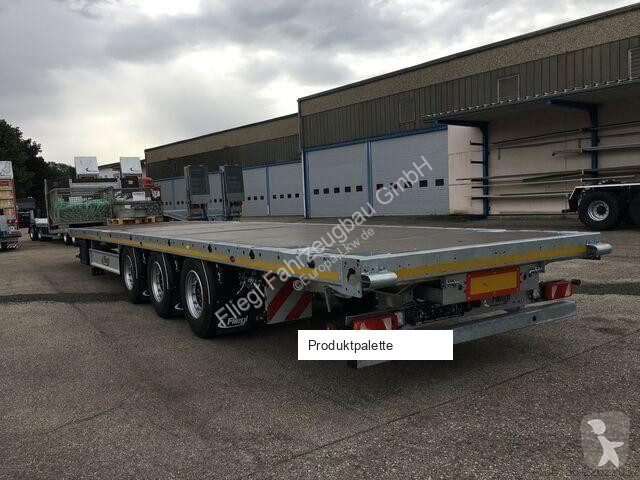

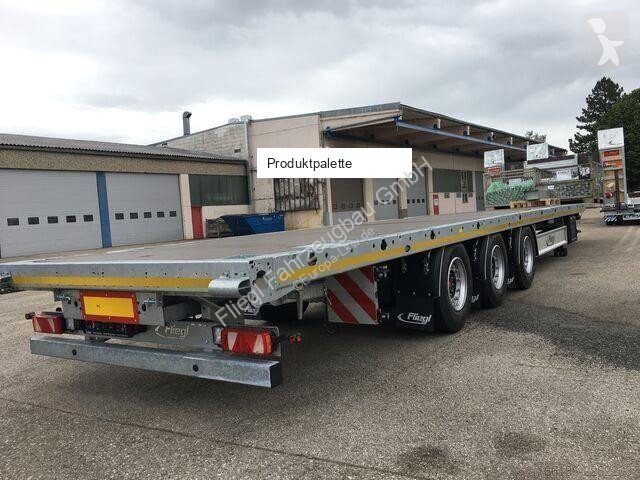

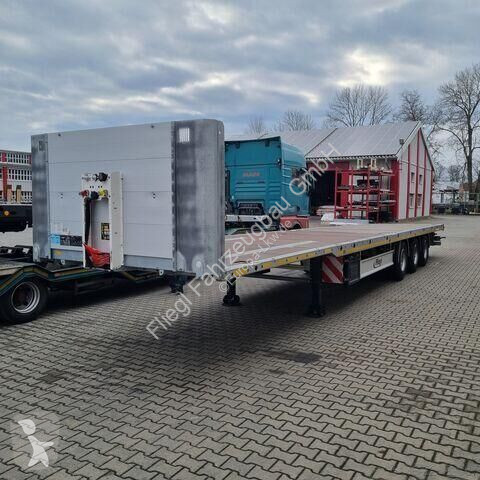

Description: Plateau semi-trailer mega
Functionality: fully functional
Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland
Container locks: 4 pairs recessed in floor for 2x20ft or 1x40ft containers, foremost position as recessed folding lock
Ride height linked to lift axle: raising lift axle increases loading/overall height by 50 mm
Farbe: silver
Achsenkonfiguration: 3 axles
#Plateau semi-trailer Mega
Bespoke transport solution – configure your Fliegl vehicle to your requirements
vehicle shown is an example
production and equipment individually to customer specification
#Chassis – general haulage semi-trailer
Fine-grain steel welded construction
Fifth wheel plate with replaceable 2" kingpin
Reinforced frame for high payload
also suitable for vehicle transport
Outer frame with "Load-Lock-Profil" at approx. 400 mm centres for lashing strap attachment
10 pairs of lashing points recessed top/outside in outer frame
10 t each

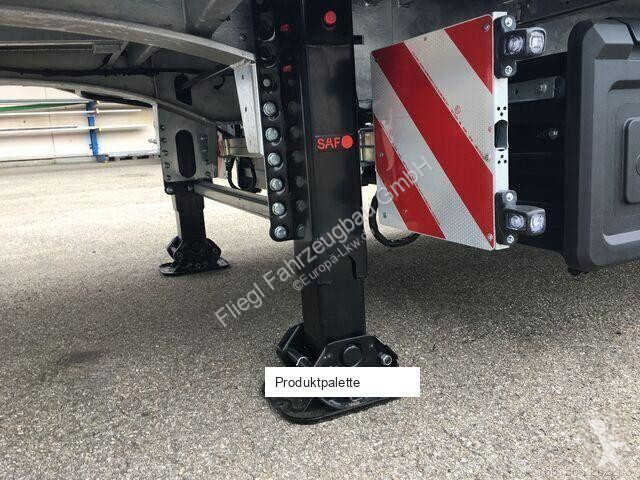

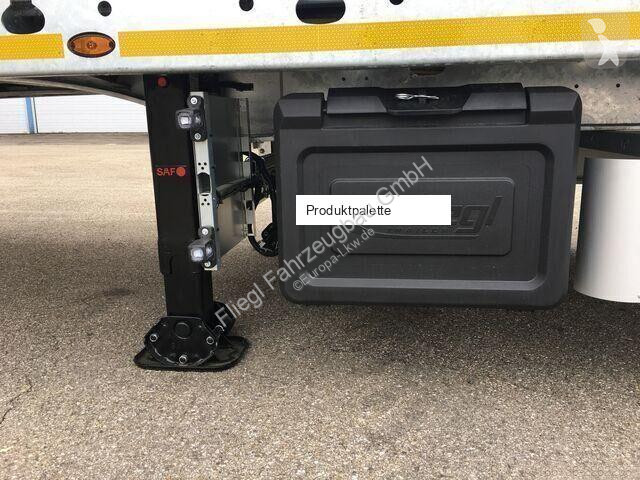

Foldable rear support legs
2 wheel chocks with holder
Aluminium side impact protection
Galvanised steel underrun protection
Quarter-shell mudguards ahead of axle 1 and behind each axle
with anti-spray flaps behind each axle
1 spare wheel holder for 1 spare wheel
with wheel fixing set
2 lockable plastic toolboxes
W=600/H=425/D=460 mm
10 pairs of stake pockets recessed in outer frame
70x40 mm internal
10 stake pockets recessed centrally in floor
70x40 mm internal
2 transverse lashing/stake rails recessed in floor
full width to outer frame
approx. 100 mm high
20 mm round steel bars top and bottom (approx. 60 mm apart)
angle-plate base
half open below
for lashing and fitting 80x80 mm stakes
#Arrangement
Stake pocket positions 2 and 4 per Fliegl data sheet
20 plug-in stakes
hot-dip galvanised
Storage space for aluminium loading ramps
ramps slide in from the rear
3 pairs of folding lashing eyes
10 t
in outer frame

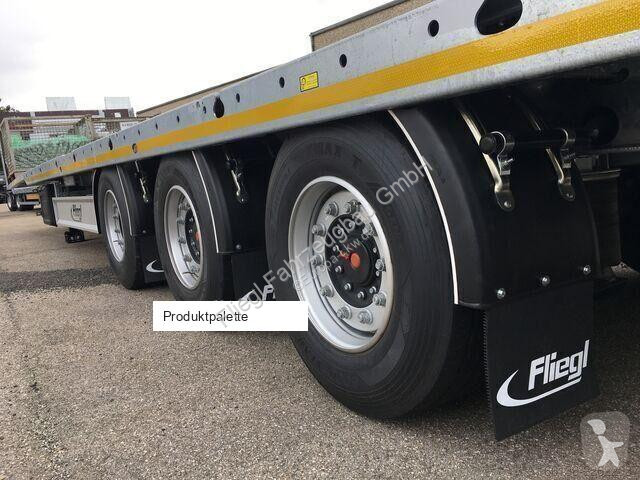

#Axles & suspension
Nwe Dp Dy Aozwn Izexsk
SAF disc-brake axles
incl. forced lowering and traction aid
activated by braking three times
#Braking system
2-line air braking system
colour-coded lines for easy servicing
Spring-loaded parking brake
2 anti-mismatch coupling heads at front
no connecting line
EBS with front EBS socket
no connecting cable

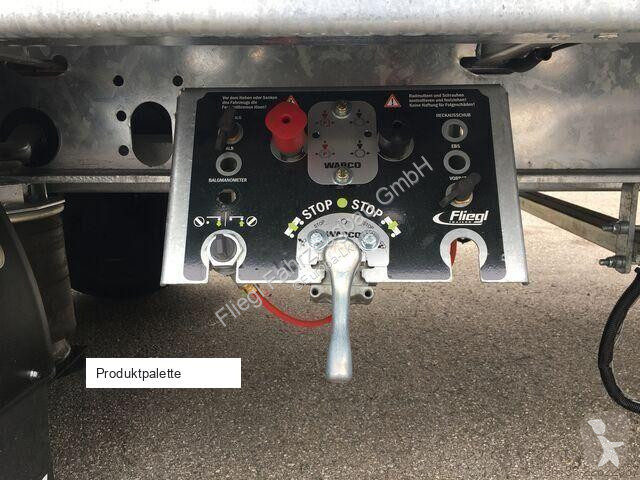

Lift/lower valve
2 ride heights adjustable via hand control (1x 980 mm
1x 1100 mm coupling height)
Trailer stability system

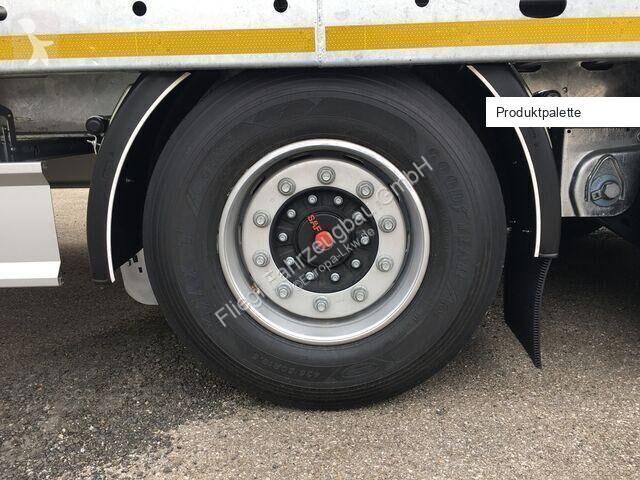

#Wheels & tyres
435/50 R19.5 steel wheels

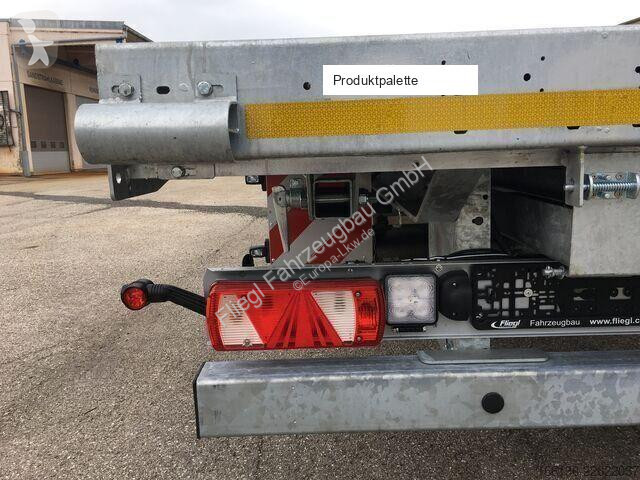

#Electrics
24 V
multi-chamber lights
Yellow LED side marker lights
2 white LED front position lights
2 white/red outline marker lights at rear
2x 7-pin and 1x 15-pin anti-mismatch sockets at front
LED work lights at sides
1x left and 1x right (direction of travel)
2 additional LED work lights at rear
1 beacon with holder
switched via side lights

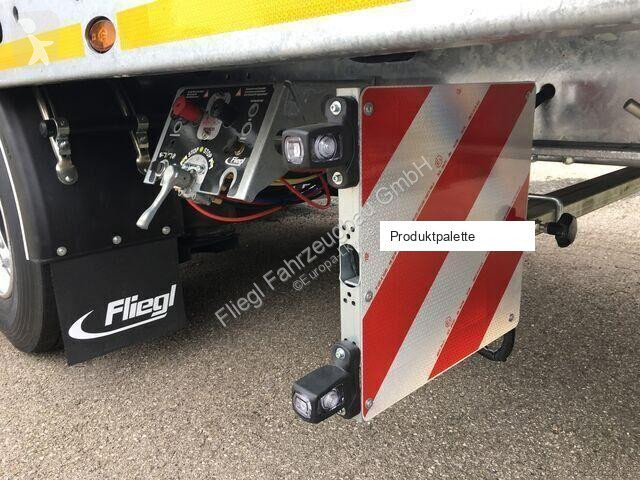

2 pairs of LED-illuminated warning boards
extendable to 4,000 mm
Additional 7-pin socket in underrun protection

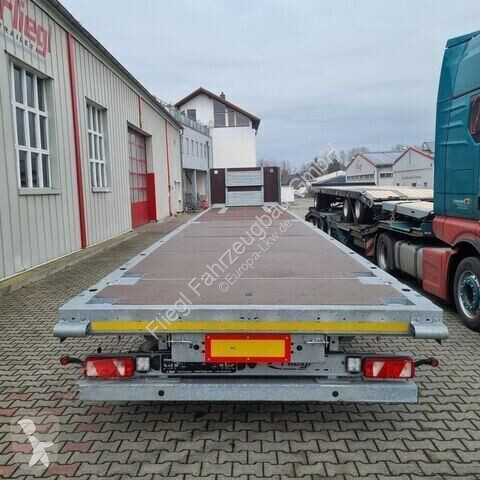

#Floor
Phenolic plywood floor approx. 30 mm thick
on longitudinal sub-frames for high point loads
forklift axle load up to max. 7,100 kg

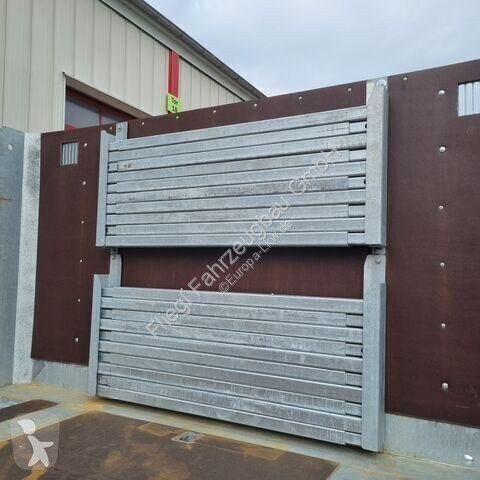

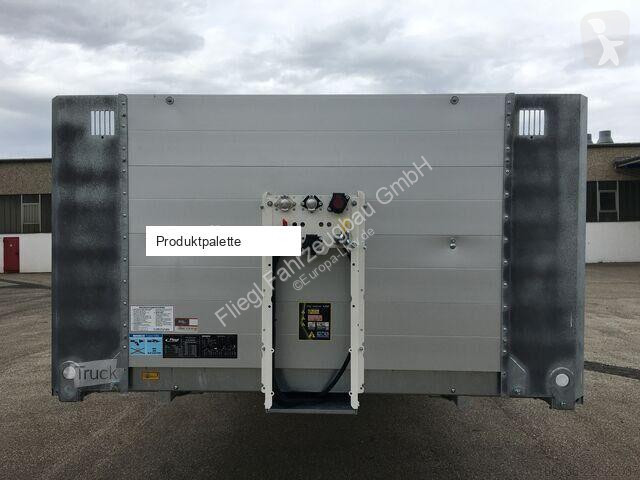

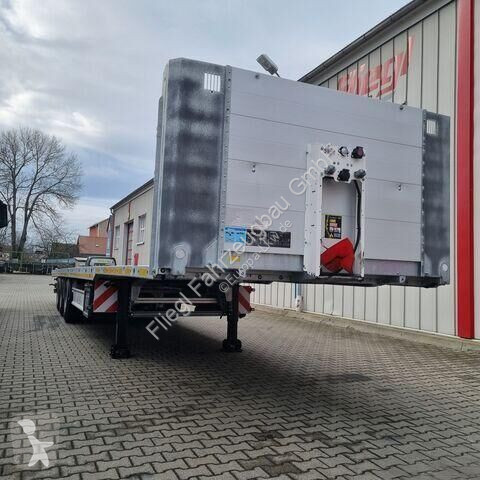

#Front wall / front corner posts
25 mm aluminium hollow profile
1,350 mm high
Solid steel corner posts (closed
heavy-duty version)
Front wall internally fitted with additional 1,250 mm high phenolic panel ("Crash-Blocker")
Steel impact protection at approx. 140 mm height on lower interior
Internal storage compartment for plug-in stakes

Ver todo

Comentarios
Localisation : • Allemagne Triptis Carrosserie : • longueur - 13,65 m, largeur - 2,48 m Description: Plateau semi-trailer mega Functionality: fully functional Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland Container locks: 4 pairs recessed in floor for 2x20ft or 1x40ft containers, foremost position as recessed folding lock Ride height linked to lift axle: raising lift axle increases loading/overall height by 50 mm Farbe: silver Achsenkonfiguration: 3 axles #Plateau semi-trailer Mega Bespoke transport solution – configure your Fliegl vehicle to your requirements vehicle shown is an example production and equipment individually to customer specification #Chassis – general haulage semi-trailer Fine-grain steel welded construction Fifth wheel plate with replaceable 2" kingpin Reinforced frame for high payload also suitable for vehicle transport Outer frame with "Load-Lock-Profil" at approx. 400 mm centres for lashing strap attachment 10 pairs of lashing points recessed top/outside in outer frame 10 t each Foldable rear support legs 2 wheel chocks with holder Aluminium side impact protection Galvanised steel underrun protection Quarter-shell mudguards ahead of axle 1 and behind each axle with anti-spray flaps behind each axle 1 spare wheel holder for 1 spare wheel with wheel fixing set 2 lockable plastic toolboxes W=600/H=425/D=460 mm 10 pairs of stake pockets recessed in outer frame 70x40 mm internal 10 stake pockets recessed centrally in floor 70x40 mm internal 2 transverse lashing/stake rails recessed in floor full width to outer frame approx. 100 mm high 20 mm round steel bars top and bottom (approx. 60 mm apart) angle-plate base half open below for lashing and fitting 80x80 mm stakes #Arrangement Stake pocket positions 2 and 4 per Fliegl data sheet 20 plug-in stakes hot-dip galvanised Storage space for aluminium loading ramps ramps slide in from the rear 3 pairs of folding lashing eyes 10 t in outer frame #Axles & suspension Nwe Dp Dy Aozwn Izexsk SAF disc-brake axles incl. forced lowering and traction aid activated by braking three times #Braking system 2-line air braking system colour-coded lines for easy servicing Spring-loaded parking brake 2 anti-mismatch coupling heads at front no connecting line EBS with front EBS socket no connecting cable Lift/lower valve 2 ride heights adjustable via hand control (1x 980 mm 1x 1100 mm coupling height) Trailer stability system #Wheels & tyres 435/50 R19.5 steel wheels #Electrics 24 V multi-chamber lights Yellow LED side marker lights 2 white LED front position lights 2 white/red outline marker lights at rear 2x 7-pin and 1x 15-pin anti-mismatch sockets at front LED work lights at sides 1x left and 1x right (direction of travel) 2 additional LED work lights at rear 1 beacon with holder switched via side lights 2 pairs of LED-illuminated warning boards extendable to 4,000 mm Additional 7-pin socket in underrun protection #Floor Phenolic plywood floor approx. 30 mm thick on longitudinal sub-frames for high point loads forklift axle load up to max. 7,100 kg #Front wall / front corner posts 25 mm aluminium hollow profile 1,350 mm high Solid steel corner posts (closed heavy-duty version) Front wall internally fitted with additional 1,250 mm high phenolic panel ("Crash-Blocker") Steel impact protection at approx. 140 mm height on lower interior Internal storage compartment for plug-in stakes

Comentarios

Tarifa de venta

Precio bajo pedido
